LCAC

AHU

560W x 1365H x 610D (mm)

Where to buy

TOP FEATURES

Hisense AHU Multi Positioning top feature icon

MULTI POSITIONING

Fit in different type of projects and room structures

Hisense AHU LEAKAGE DEFECTION top feature icon

LEAKAGE DEFECTION

Release the nitrogen from the evaporator coil

Hisense AHU 0.8 In.W.C High ESP top feature icon

0.8 In.W.C High ESP

Hisense AHU 24V Control top feature icon

24V Control

Highlights

Hisense AHU Leakage Detection feature icon Hisense AHU Leakage Detection feature icon

LEAKAGE DETECTION

Before installing the machine, use special tool to press the part as the picture shown below to release the nitrogen from the evaporator coil. If there is no nitrogen released, the unit will be diagnosed with leakage problem.

Hisense AHU Maximum 0.8 in WC feature icon Hisense AHU Maximum 0.8 in WC feature icon

MAXIMUM 0.8 IN. W.C

Maximum 0.8 inches W.C. makes the minimum the temperature difference from different positions and distance of the room, making it possible to connect the longest duct.

Hisense AHU Multi Positioning Installation feature icon Hisense AHU Multi Positioning Installation feature icon

MULTI POSITIONING INSTALLATION

Multi positioning installation is able to fit in different type of projects and room structures.

FLEXIBLE REPLACEMENT SOLUTION

This system use common 24V communication, so the unit is compatible with millions of 24V R410A devices in the market and compatible with the 24V wired controller in the market.

* Contact with distributor for more details.

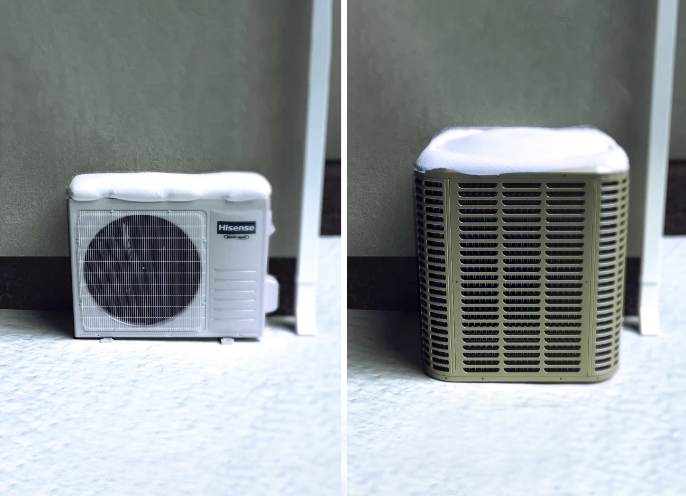

Compact Design and More Protective

Side discharge compact design provides better protection in different tough weather conditions.

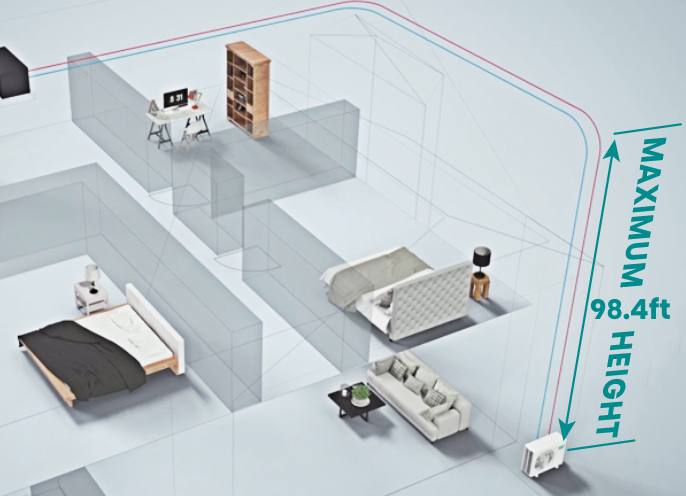

Flexible Connect Pipe

Maximum 98 ft height difference and maximum 246 ft length.

Wide Temperature Range

-13°F (-25°C) Lowest Ambient Temperature for Heating: 5°F (-15°C) Lowest Ambient Temperature for cooling.

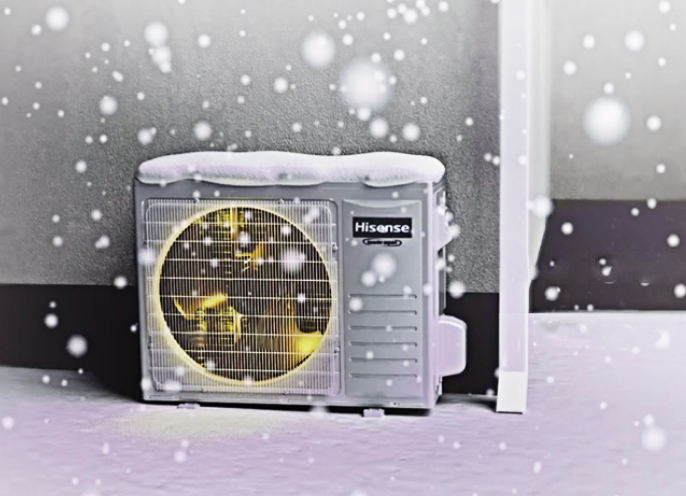

Wide Operation Range Heating -13~75°F

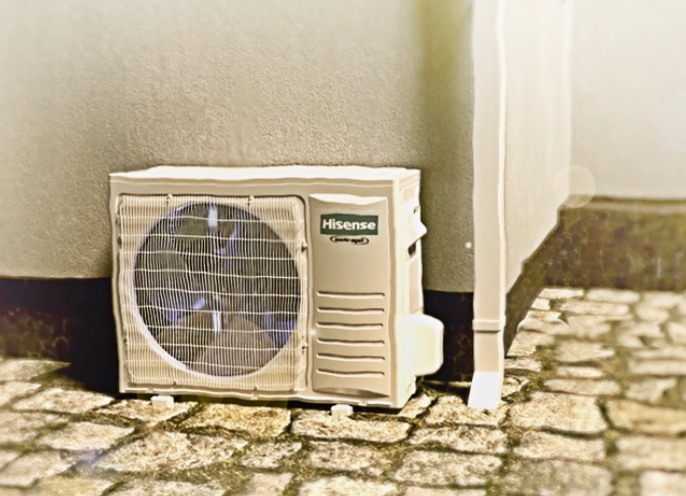

Wide Operation Range Cooling 5~122°F

Specification

NOW, HERE’S THE TECHNICAL BIT…

Cooling Capacity:
24000Btu/h - 36000Btu/h
Heating Capacity:
400 (23524000Btu/h - 36000Btu/h
Width:
560mm
Height:
1365mm
Depth:
610mm
View More

All product descriptions, pricing and dimensions are approximate, product availability, specifications and features are subject to change at any time, and from time to time, and without notice.
